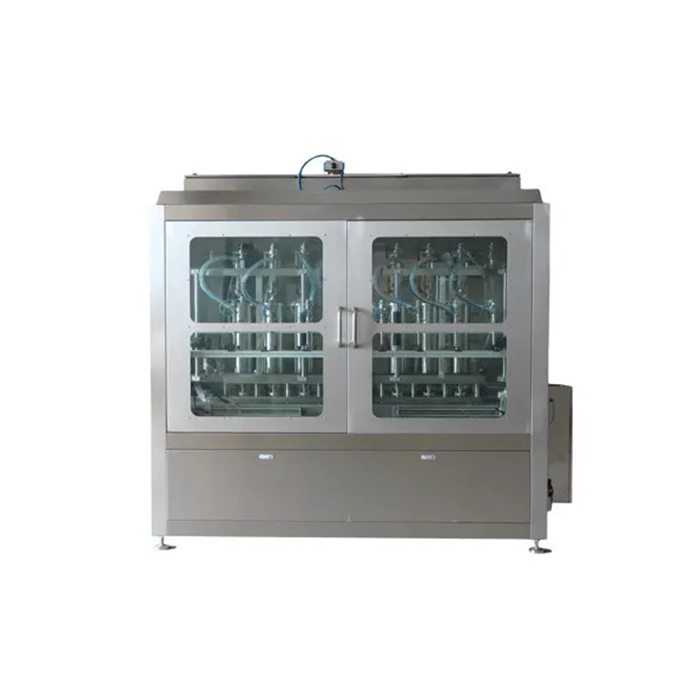

Sjálfvirk PET flöskufyllingarvél / átöppunarlína / verkefni

þriggja í einni vél fyrir PET flösku samþættir hlutverki skolunar, fyllingar og lokunar saman. Byggt á háþróaðri tækni erlendis og hannað í samræmi við kröfur um vatnsfyllingu

Aðalatriði

---

1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Fjárhæð vinnuaðstöðu	Skolið 32, fyllið 32, lokið 10
Framleiðslugeta	15000BPH (500 ml)
Þrýstingur loft uppsprettu	0,7Mpa
Loftneysla	1,2m3 / mín
Skolið vatnsþrýsting	0,2-0,25Mpa
Skolvatnsgeta	2,5T / H
Aðal mótorafl	3,2kW
Heildarafl	4,8 kg
Mál	4250X2150X2200mm (L × B × H)
þyngd	5200 kg

Við bjóðum einnig upp á Complete Automatic Pure Water Bottler Plant

Það inniheldur 4 meginhluta:

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

Helsta lýsing línunnar:

---

1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5.  We provide the engineers for customer installation, training in customer's factory.

Líkön og hraðalisti

---

Fyrirmynd	XGF8-8-3	XGF14 / 12/5	XGF16 / 16/5	XGF24 / 24/8	XGF32 / 32/10
Þvo hendur	8	14	16	24	32
Fylling lokar	8	12	16	24	32
Líta hendur	3	5	5	8	10
Hentugar PET / glerflöskur (150ml til 2000ml)
Stærð (Hraði) Grunnið á 500ml	2000BPH	5000BPH	7000BPH	12000BPH	15000BPH

Birgir rafmagns íhluta

---

Aðalsamsetning	Lýsing Birgir
PLC	Mitsubishi (Japan), Siemens (Þýskaland)
Snertiskjár	Weinview (Taívan)
Tíðnibreytir	Mitsubishi (Japan), Siemens (Þýskaland)
Loftrofi	Schneider (Frakkland)
Brotsjór	Siemens (Þýskaland)
Samband	Siemens (Þýskaland)
Ljósrofi	Omron (Japan)

Fljótlegar upplýsingar

---

Gerð: Bensínvél
Skilyrði: Nýtt
Forrit: Drykkur, efna-, læknisfræðilegt
Gerð umbúða: Flöskur
Pökkunarefni: Plast
Sjálfvirk einkunn: Sjálfvirk
Drif gerð: Rafmagns
Spenna: 380V / 220V
Afl: 4,8KW
Upprunastaður: Shanghai, Kína (meginland)
Vörumerki: VKPAK
Mál (L * W * H): 4250X2150X2200mm
Þyngd: 5200 KGS
Vottun: CE, ISO, SGS
Þjónustuþjónusta veitt: Verkfræðingar tiltækir þjónustu véla erlendis
Verksmiðja: TENGLAR VÉLAR
Flaskastærð: 150ml til 2000ml
Þvermál flöskuháls: 15-55mm
Flaskaefni: Plast / gler
Hraði (grunnur á 500ml flösku): 15000B / H
Stýrikerfi: PLC snertiskjár (MITSUBISHI JAPAN)
Loki: Skrúfaðu / ýttu á hettuna
Lyfta húfa: Hafa
Fylling vökva: steinefni / hreint vatn

---
